Daccordi

The new range of Daccordi frames includes modern fillet brazed steel road frames, classic lugged steel frames, exclusive made to measure carbon racing frames and a complete line of gravel frames. If you like disc brakes or prefer rim brakes Daccordi has a frame for you. All their frames balance the quality aspects of lightness, stability, responsiveness and ride ability. With great attention to detail and the fact all Daccordi frames are painted in house, the bicycle looks as good as it rides and certainly with the ultimate quality of frames that are made one at a time the durability and long life is guaranteed.

We hope these pages give you pertinent information and a desire to ride one of Italy’s jewels of bicycle production and of course we are here to help answer any questions you may have.

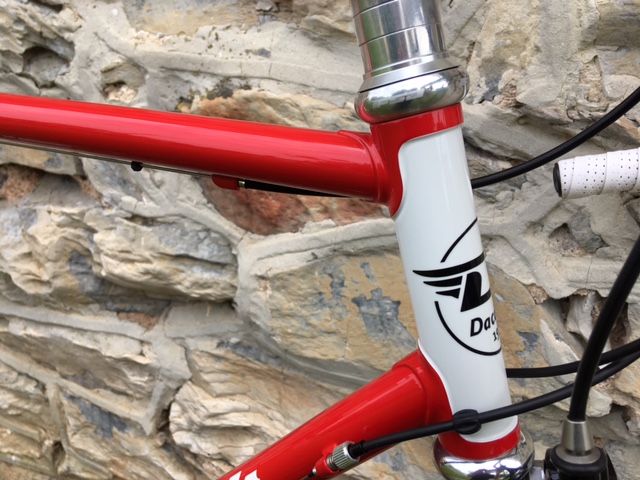

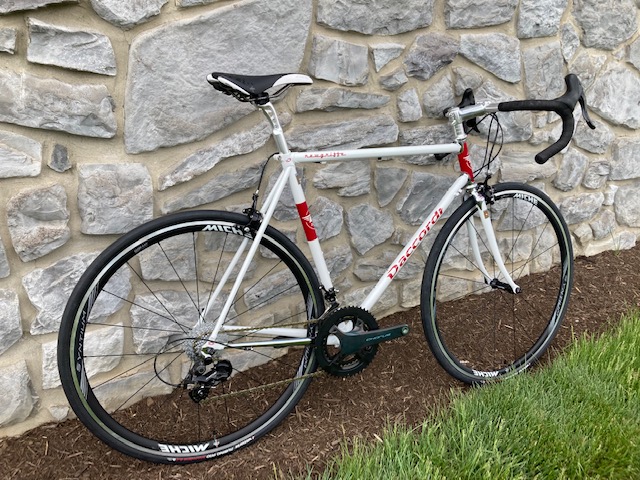

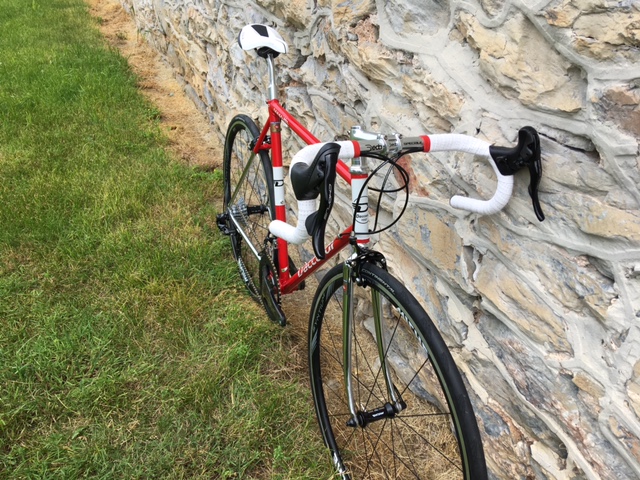

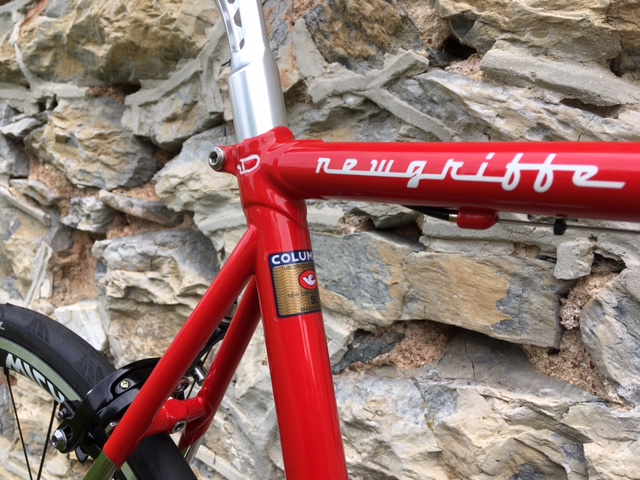

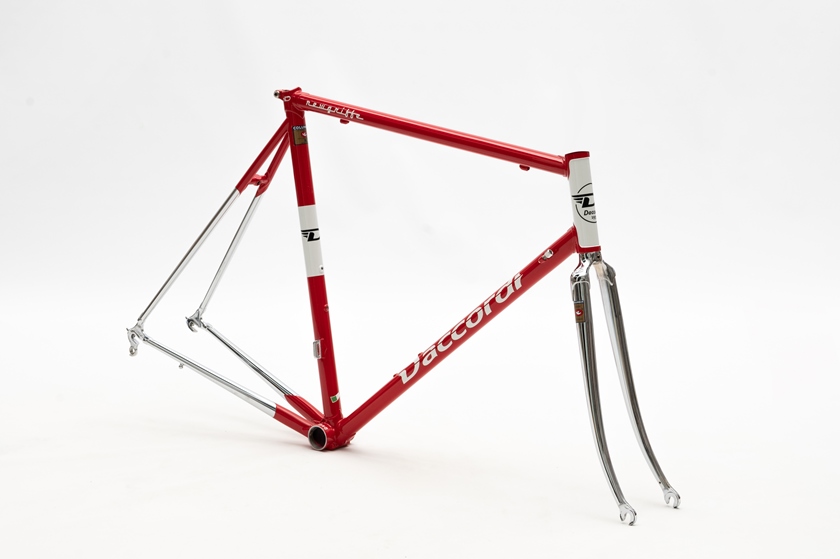

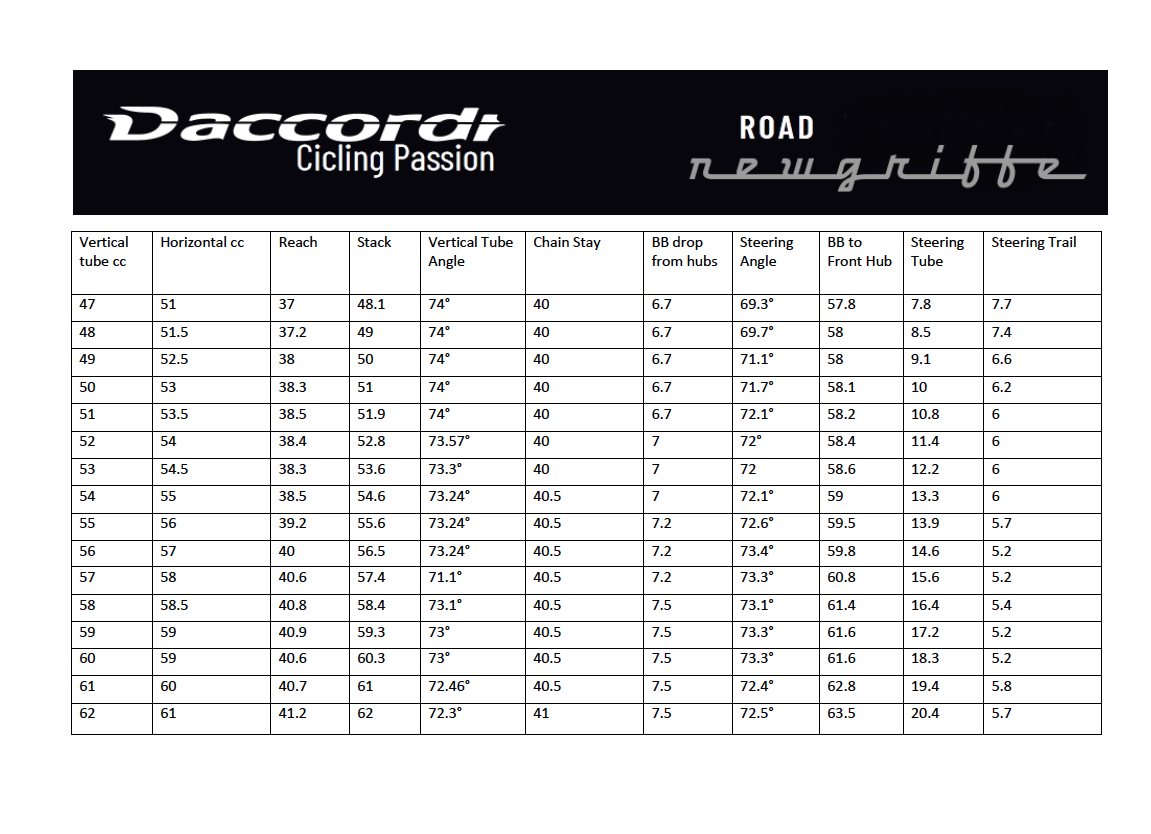

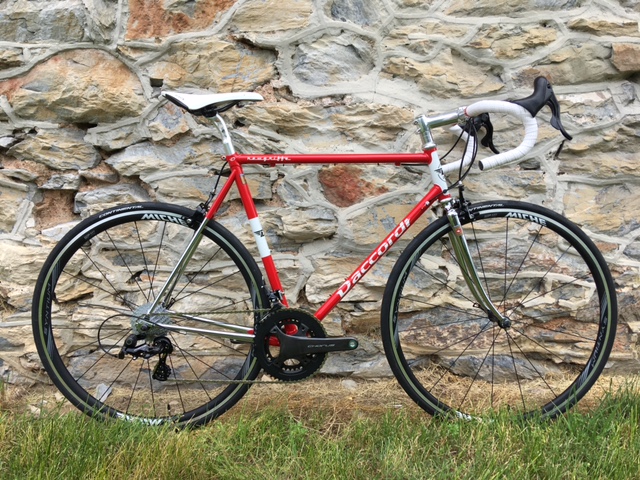

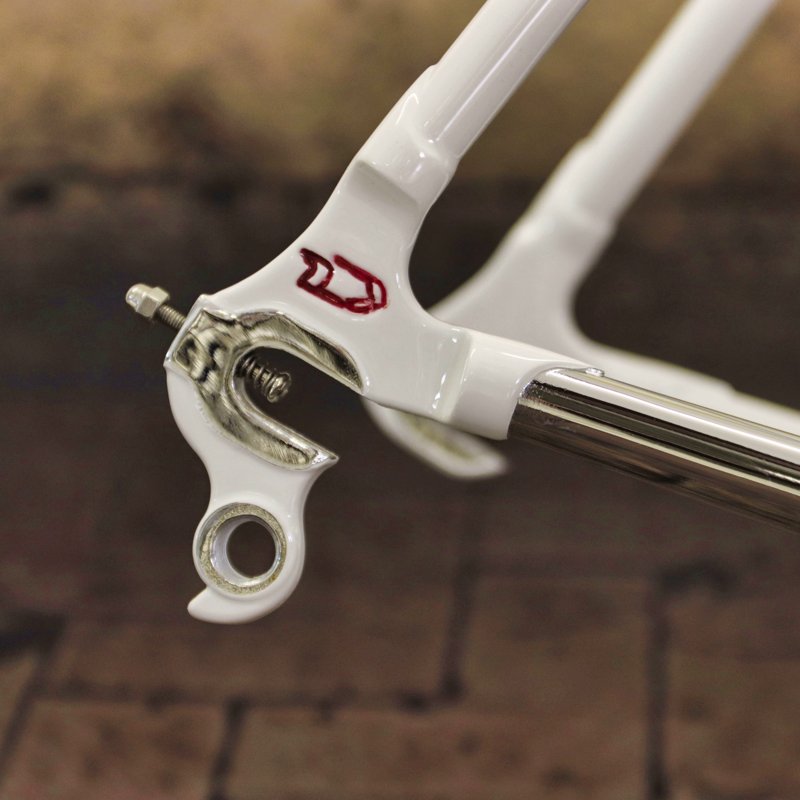

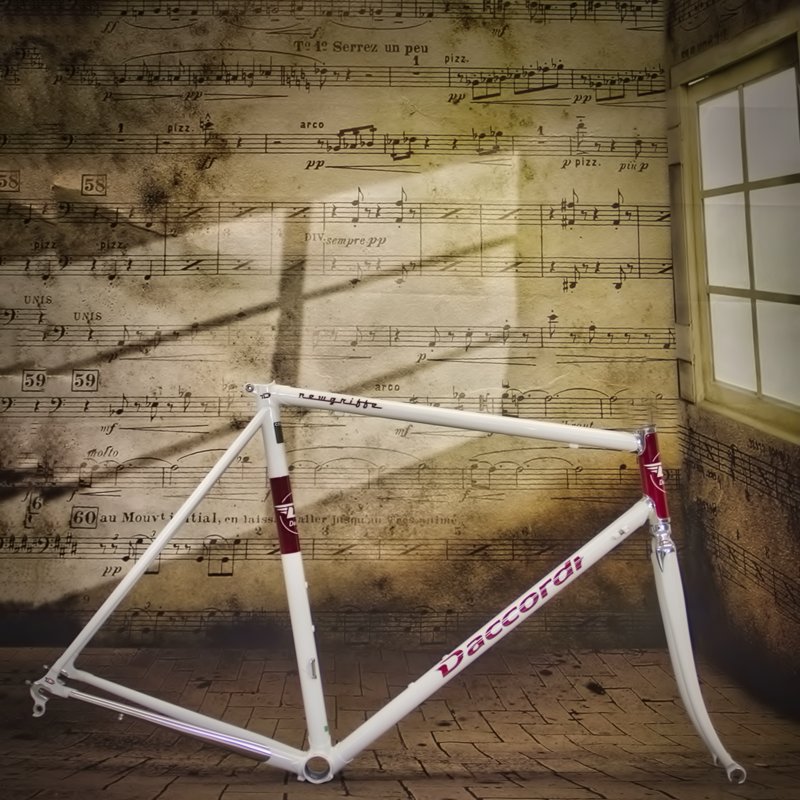

Daccordi Heritage model road bike is the New Griffe. Originally built in 1987 this iconic model was raced professionally in the 90’s with many great victories. Frame is built with New Columbus SL tubing with upgrades to dimensions and wall thickness and in the classic lugged style. The quality of brazing and hand filing is showcased in the New Griffe model. Also a technical innovation developed by Daccordi engineers is the forward seat tube position of the multi-dimension bottom bracket. The seat tube is brazed closer to front wheel to increase stiffness and improve reactivity. This design creates a dynamic ride with improved climbing and more stability. Of course like all classic Italian steel lugged frames New Griffe features chrome trim and chrome steel fork

Features

Lugged frame with Columbus SL

Chrome trim and Chrome steel fork

Forward position of seat tube

Frame weight 1400 grams

New Griffe Frameset Price. $2495

Complete Bike Special

Daccordi Borea is the best choice for long distance and endurance riding.  With thinner wall thickness of the special Italian steel tubes Daccordi creates a lighter steel frame and with special geometry designed for endurance the Borea  rides with all day comfort.

Borea steel tubes have minimum thickness of .38mm and with smooth lines of fillet brazed construction this model has incredible stability, lightness, comfort and excellent durability.  The frame features a tapered head tube of 1 1/8 x 1 1/2 and matched to a full carbon fork.  Borea like all Daccordi frames is built and painted in house.  Luscious paint colors finish the frame in a palette of your choice

Frame weight  1250 grams

Frameset includes Carbon fork 1 1/8 x 1 1/2

Borea can be built for rim brake or disc brake

Borea Framset Rim Brake Price  $2895

Borea Frameset Disc Brake Price  $3195

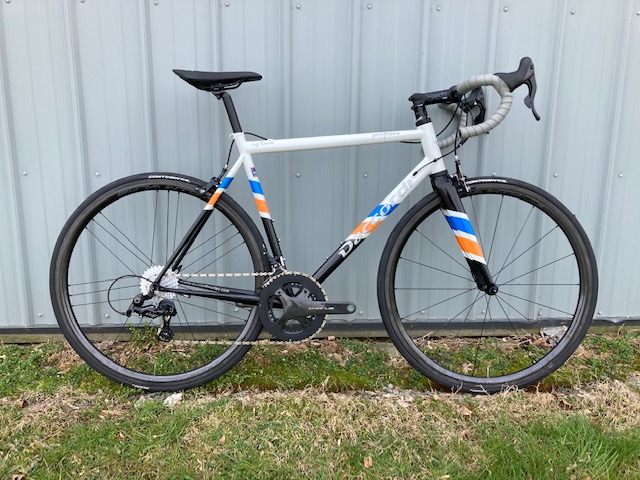

A modern frame but already a classic from Daccordi. Profidea has a history from the 1990s as a professional level racing frame and still today this model out performs many of the competitor’s carbon bikes. Profidea is light, it is stiff, it is reactive and resilient. This is a bike with all day comfort but you can still kick in a high gear for a sprint. Profidea climbs with alacrity and descends with confidence and stability. This bike is a joy to ride.

Profidea is built with triple butted Nobium steel that has maximum thickness of .8 mm and minimum thickness of .45mm. The frame is carefully fillet brazed and completely hand polished. This method showcases the fine lines and smooth curves of the bicycle frame. The frame is then matched with a carbon fork and tapered front end of 1 1/8 x 1 1/2 to give the bicycle more stability when descending twisting mountain roads.

Profidea can be built for rim brakes or disc brakes.  Frame weight is 1300 grams.  Stock geometry as well as custom geometry are available.

Profidea Rim Brake Frameset Price  $2895

Profidea Disc Brake Frameset Price  $3195

Daccordi has been at the forefront of Italian carbon frame production at the beginning of use of carbon for professional racing frames.  And unlike other famous carbon brands like Pinarello, Wilier, Carrera etc. Daccordi chooses to build the frame one at a time and with ability to produce in custom geometry.  For this reason Daccordi builds the Fly model in tube to tube method.  It is far more difficult and time consuming than building monocoque or having a big factory in China build monocoque but Daccordi chooses quality over quantity and ultimately chooses customer satisfaction!

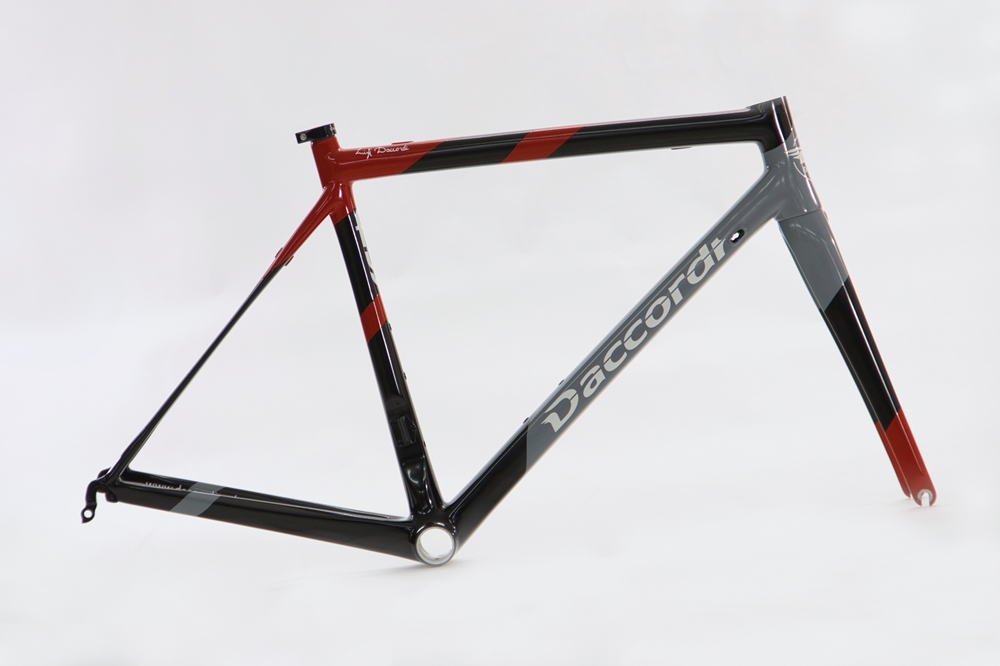

The Fly is the ultralight carbon frame in the Daccordi range and with a raw frame weight of 790 grams for rim brake version it has achieved this objective.  Fly is ultralight but without sacrifice in strength and rigidity and rides with incredible precision and deft handling.

When producing Fly the Daccordi technician carefully cuts and mitres the Toray T700 and T800 carbon tubes.  Then the tubes are fastened with an aerospace adhesive.  Careful use of Kevlar inserts are used in high stress areas of the frame to increase strength and durability.  After wrapping the joints in carbon the frame is then vacuum moulded for better homogenous frame strength and integrity.  Daccordi integrates a tapered full carbon fork and the Fly is offered for both rim brake or disc brake

Key information for FLY

Frame weight raw at 790 grams

Toray T700 and T800 carbon with 3K finish

Tapered 1 1/8 x 1 1/2 carbon fork

PF86 bottom bracket

27.2 seatpost diameter required

Built for use with either rim brake or disc brake and accepts all electronic drivetrains

Can be built stock geometry or Custom

Frameset Price. $5695 rim brake.   $5995 disc brake

Following the success of the Profidea road frame the engineers at Daccordi found the gravel project to be a natural extension. Steel is the perfect material for gravel since it is incredibly durable and since the ride is both comfortable and exhilarating. Like the road version Profidea Gravel is fillet brazed with triple butted nobium alloy steel and a carbon gravel fork dresses the front end. Fork and head tube are tapered 1 1/8 x 1 1/2

Profidea accepts a wide variety of tire sizes from 700 x 28 to 700 x 42. Mounted with a pair of high quality road tires this Daccordi rides like a super fast road bike. Mounted with wider knobby tires the Profidea will handle even tougher single track. Frame has mounts for racks and fenders to make this bike super versatile.

Profidea Gravel Frame set Price  $3195

Our Profidea Gravel bike built with Campagnolo Ekar 1 x 13 group, Deda Gera alloy wheels, Challenge Gravelgrinder tires and KRU bar and stem weighs an incredible 20.25 lbs.  This is lighter than most carbon gravel bikes!

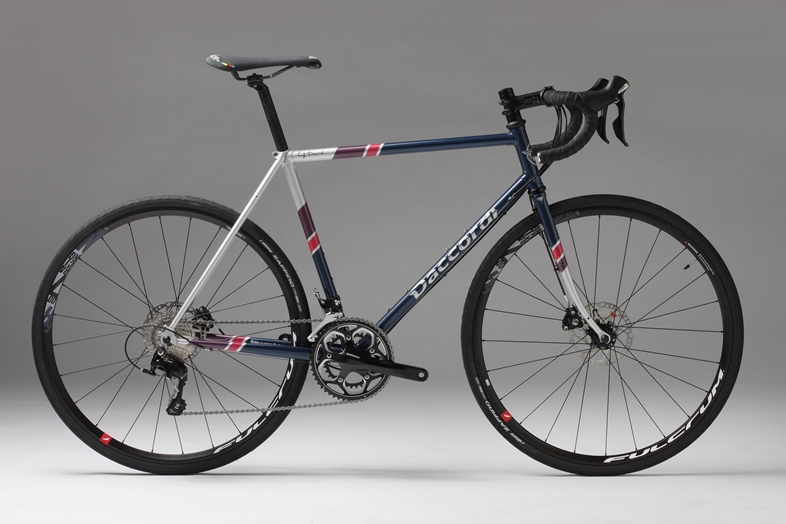

Daccordi Alterego is the most versatile of the Daccordi steel models. Alterego can be ridden on the pavement or gravel, is a great all weather commuter bike or mount racks and ride as a touring bike. It is difficult to classify Alterego and this model is designed for adventure, for sport or for leisure riding. With it’s lugged steel construction and longer wheel base Alterego will provide all day comfort and an easy manageable ride.

Alterego is built with 4130 cromoly steel and features an 1 1/8 head tube and steel fork with flat crown. Maximum tire size is 42mm and frame has flat mount system for disc brakes. This is a very unique bicycle and of course is painted in Daccordi shop with most luxurious paint and finish. Alterego looks as good as it rides

Features:

4130 Cromoly with classic lugged construction

Flat fork crown steel fork with 1 1/8 steering column

Flat mount system for disc brakes

Rack and fender mounts

Frame weight of 1650 grams

Alterego Frameset Price $2195

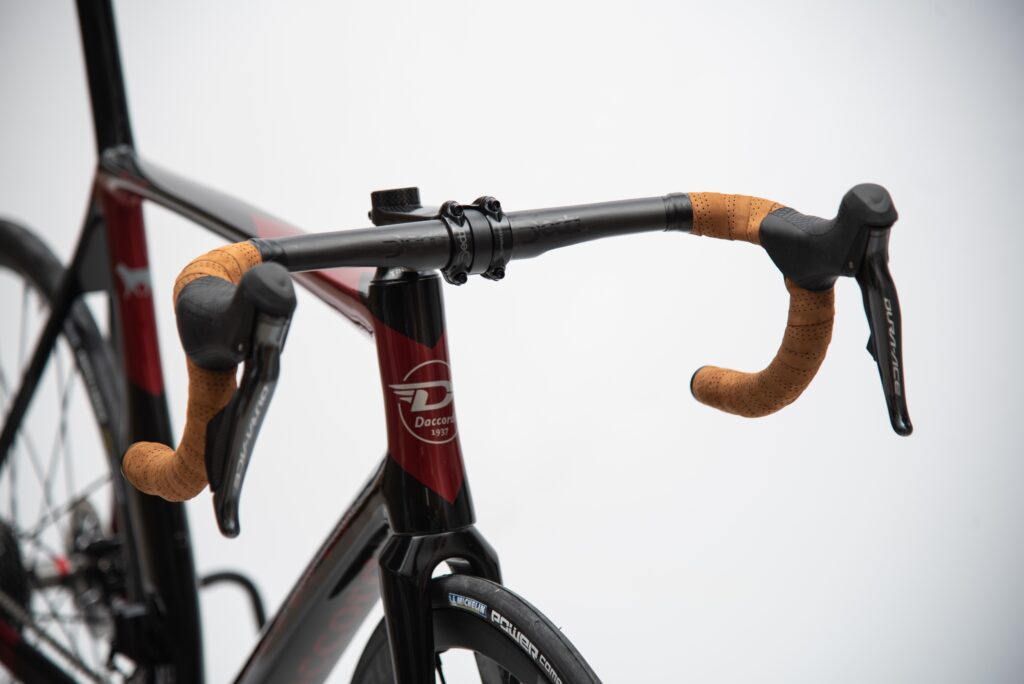

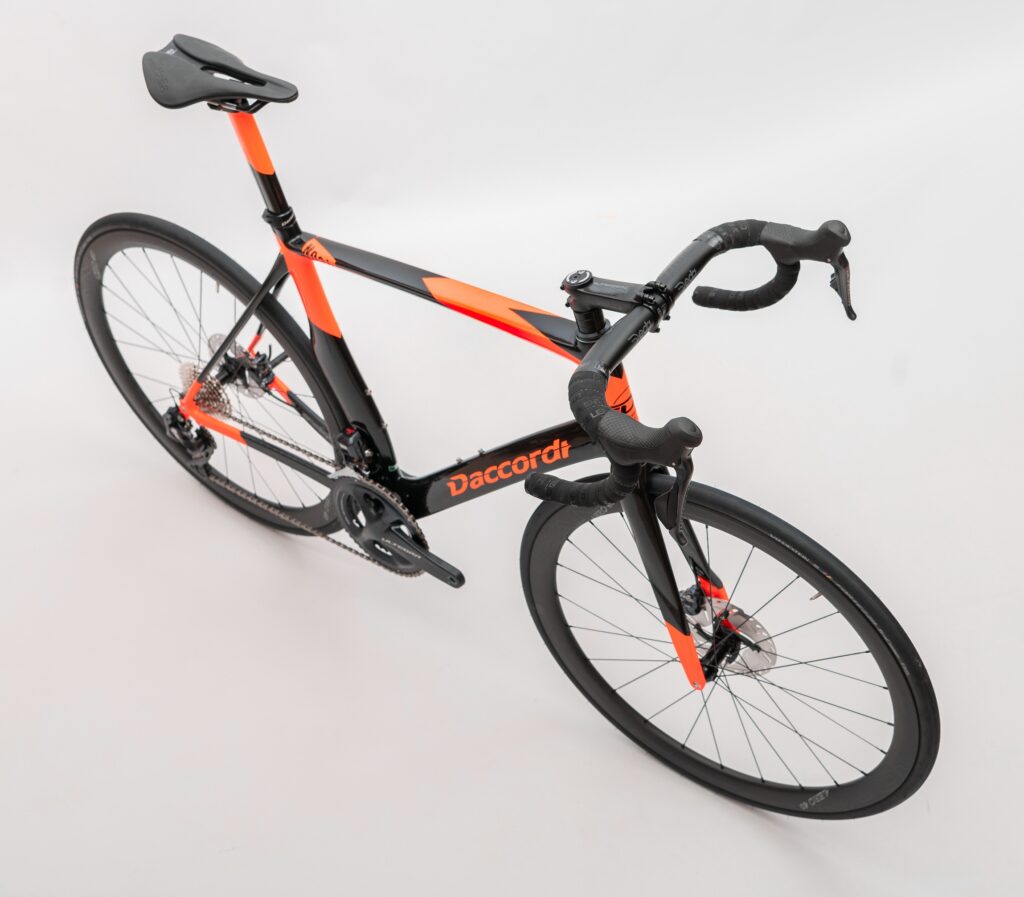

Daccordi Noah is the ultimate carbon race bike because it is light, stiff, aero and can be built custom to achieve the perfect fit.  The Noah model is hand built in the Daccordi shop using the tube to tube method.  Only the finest carbon material and resins are used in this frame and the tubes are carefully mitered, glued with aerospace adhesive and vacuum sacked for perfect impregnation of the resin.  These frames are super durable

The Noah uses aero seat tube and seat post system and a cut out for the rear wheel all to save rider effort.  The aero fork cuts the wind.  The racer perfectly fit on his custom Noah will save watts and gain free speed.

Noah can be built for rim brake, disc brake or no cable design using Deda ICS system.  We recommend wireless electronic drivetrain when using the ICS system.

Daccordi Frameset includes frame, fork, headset, seatpost and thru axles come with the disc brake version

Noah Rim Brake Frameset Price. $4595

Noah Disc Brake Frameset Price. $4895

Recommended Complete Bike

Noah Rim brake frame

Campagnolo Record group

Campagnolo Bora WTO wheels

Vittoria Corsa Control tires

Deda Superzero handlebar and stem

Fizik Adaptive saddle

Fizik Supercush tape

Total price. $9395

Noah Disc ICS frame

Sram Red AXS etap group

Miche SWR disc wheels

Vittoria Corsa Control tires

Deda Superzero ICS system handlebar and stem

Fizik Adaptive saddle

Fizik Supercush tape

Total Price  $11,395

Allow 90 days production time for your custom Daccordi Noah

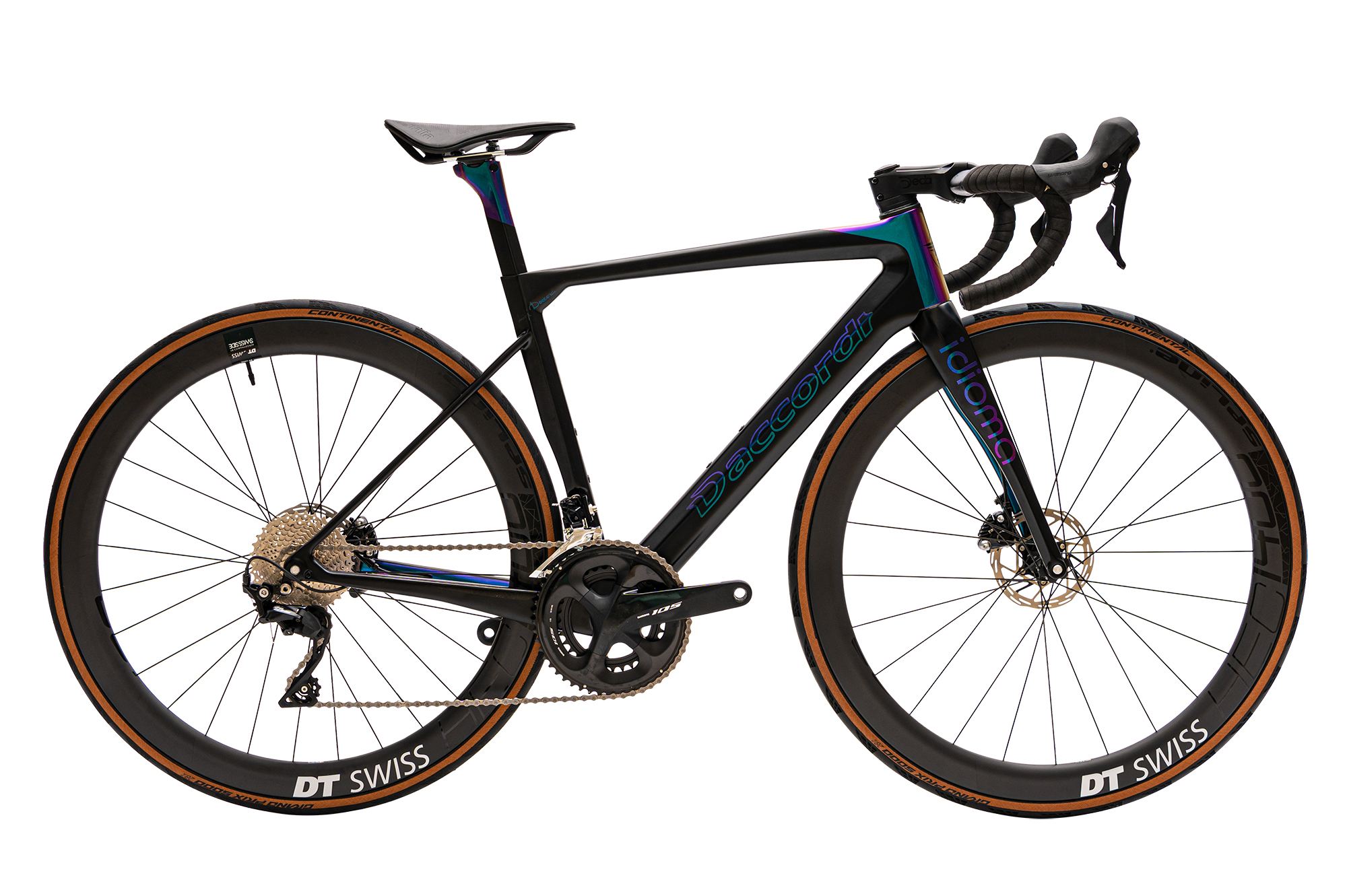

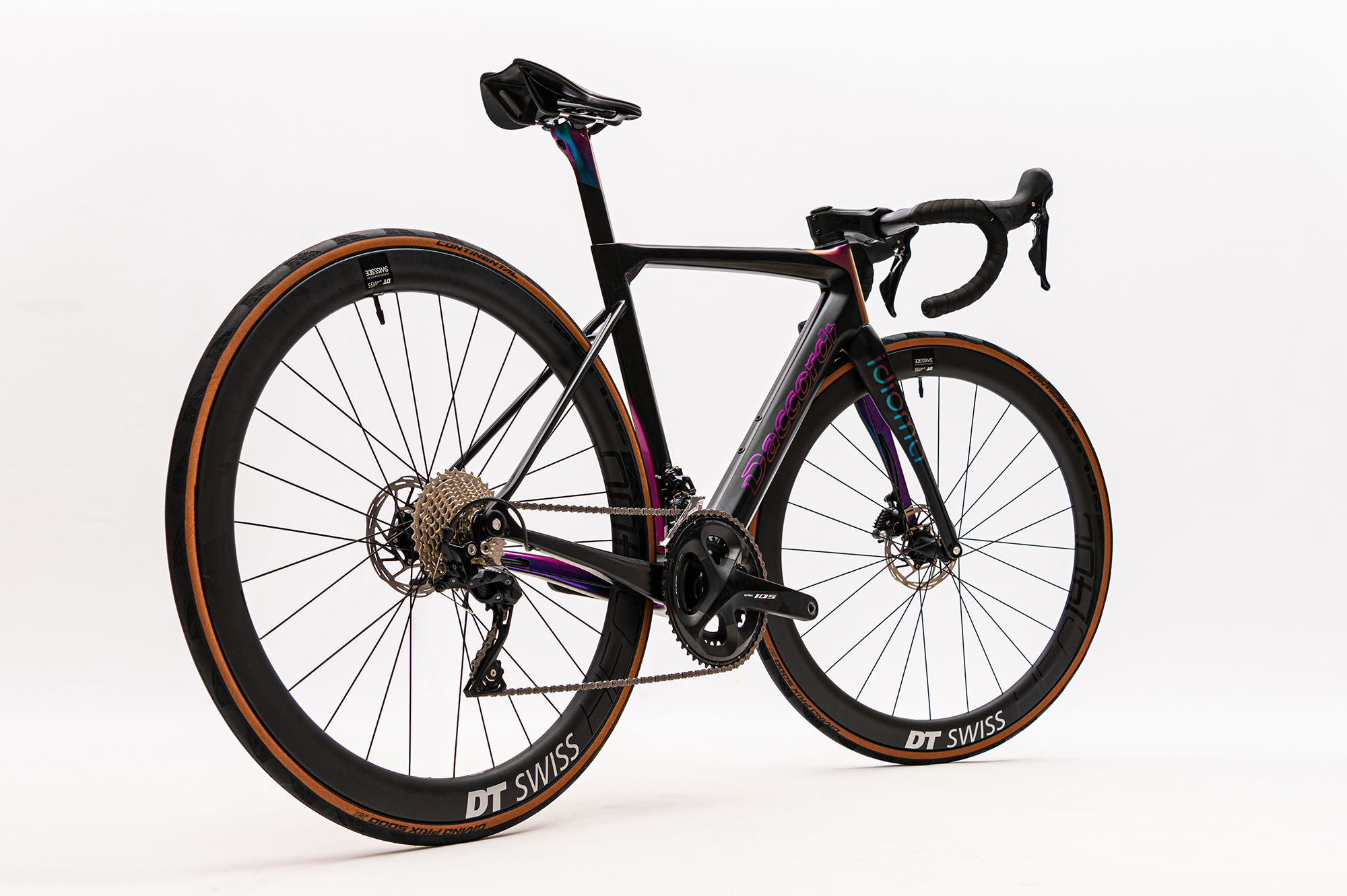

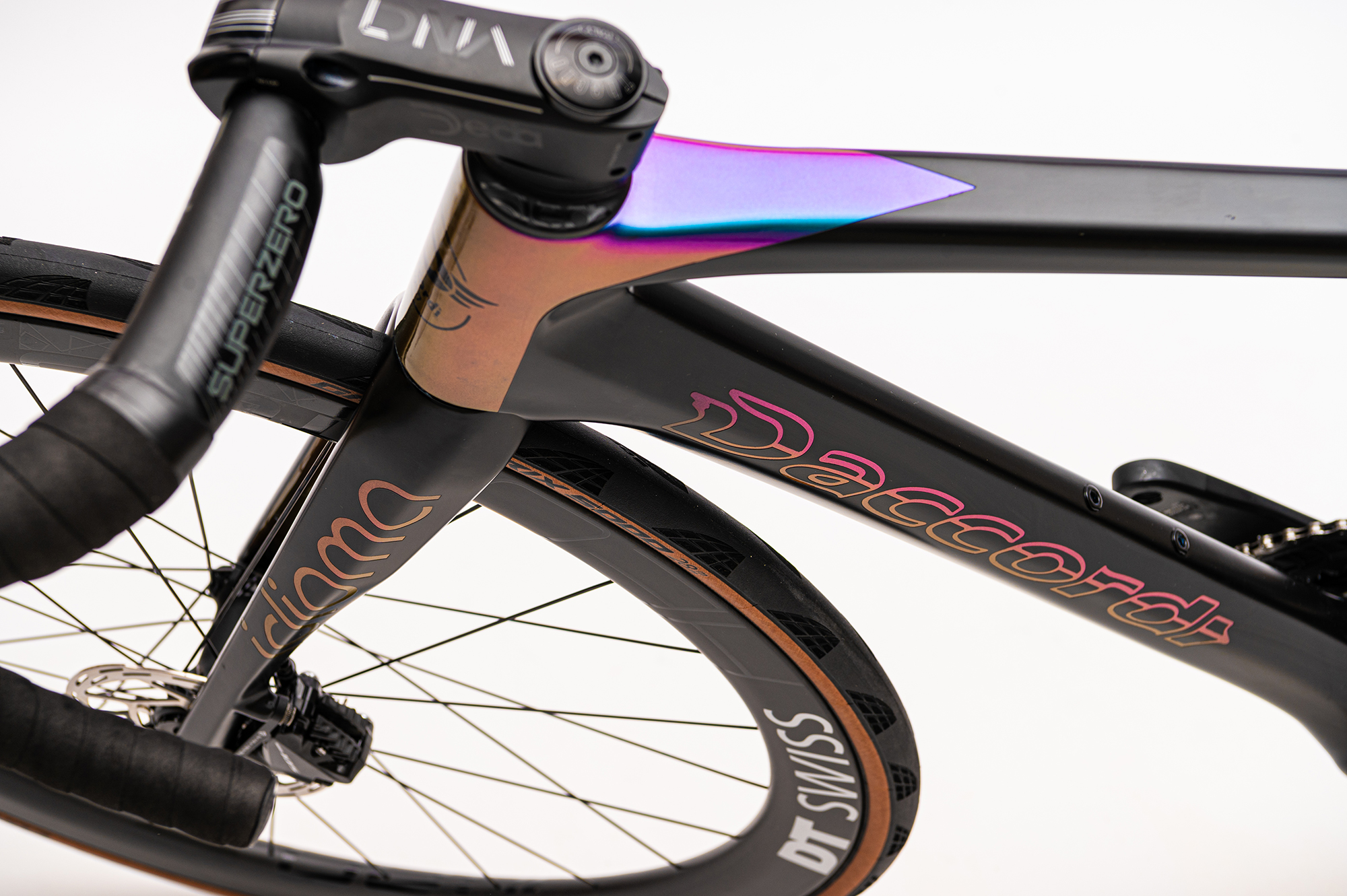

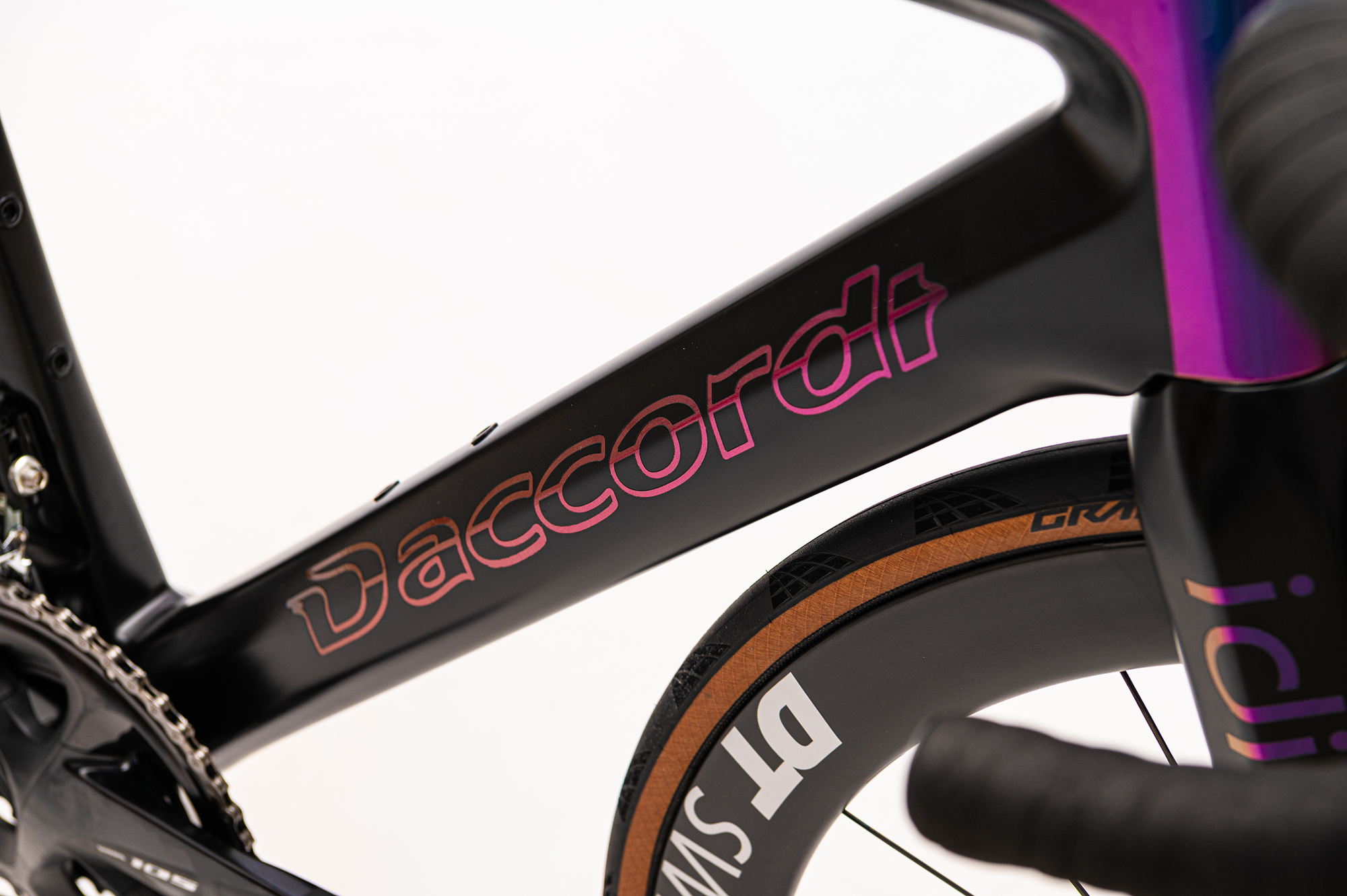

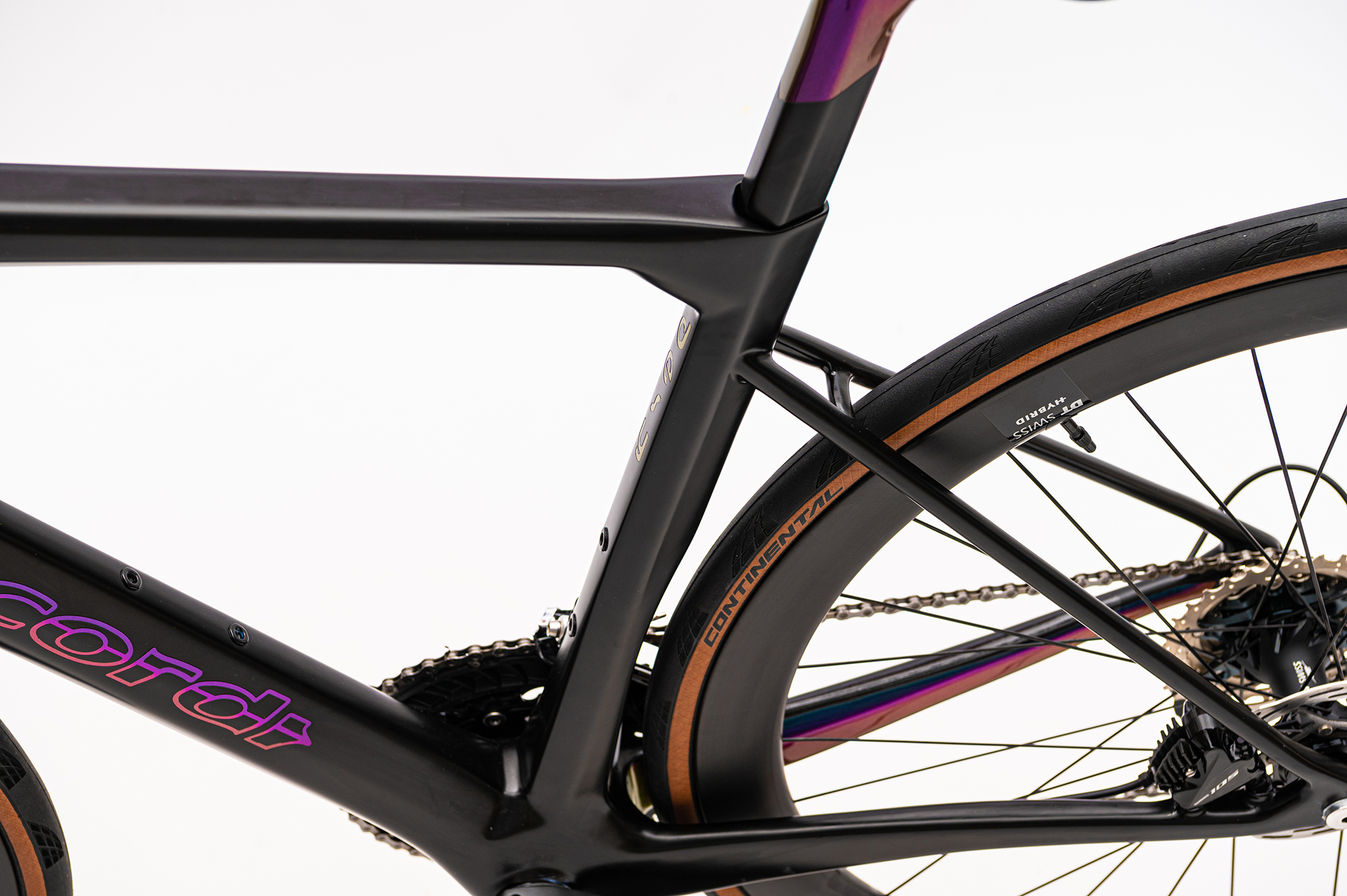

Count on Daccordi Cycles to be a leader in style and modern design.  The latest carbon model, Idioma, epitomizes Italian style.  An exquisite bike to look at but even more pleasing to ride and completely made in Italy, the Idioma combines aerodynamic tube shapes matched to a compact rear triangle and a relaxed seat tube.  The top tube is horizontal and the quality of carbon along with the frame design absorbs vibration and stress from the road.  Daccordi Idioma is professional level race bike in terms of stiffness and reactivity but far more comfortable for us mortals that love the performance without the harshness of ride.  Idioma raw frame weighs 990 grams and the straight fork weighs 360 grams.  The Idioma utilizes the Deda ICR system of no cable look and uses 1 1/2 x 1 1/2 integrated headset.  Aerodynamic seatpost is included with each frameset.  Bottom bracket is press fit

Idioma Frameset Price. $3495
